Military Standard Connector

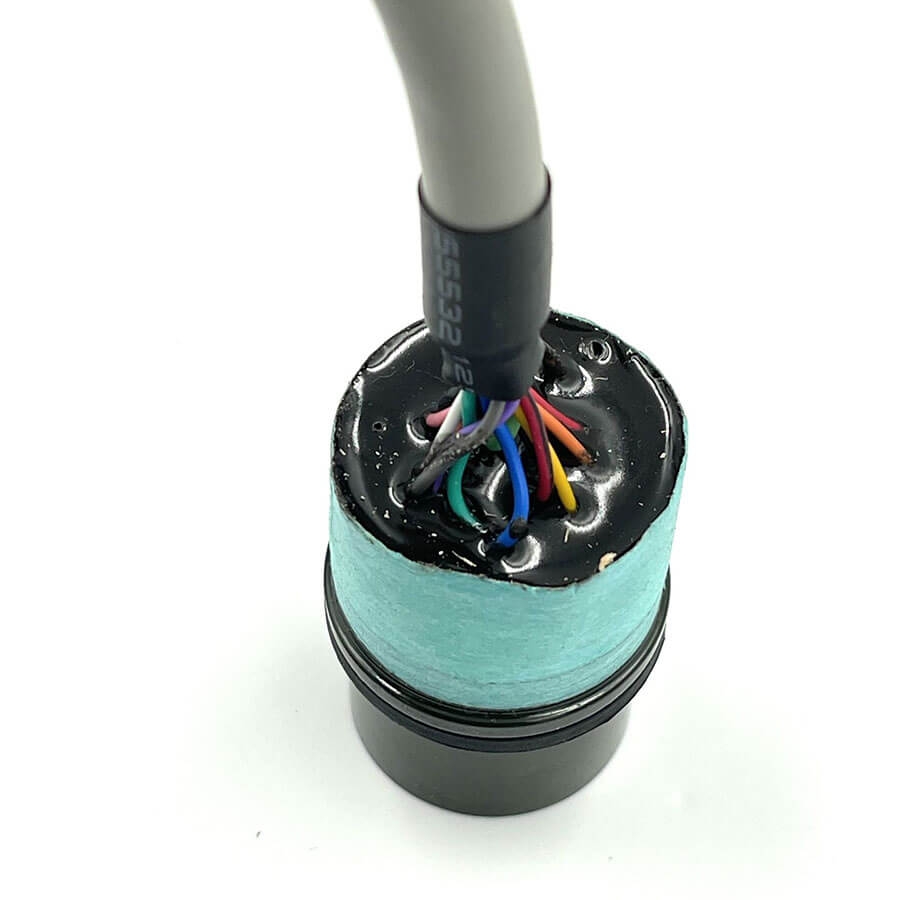

A Military Standard Connector (Mil-Spec Connector), such as the MS3108A20-29P, is specifically designed for military equipment, offering high durability and reliability to operate in harsh environments. These connectors comply with military standards (e.g., MIL-STD in the United States) and are widely used in defense, aviation, aerospace, naval, and industrial applications.

Inquiry

Key Features of Military Standard Connectors:

  • Durability: Withstands strong vibrations, impacts, and frequent usage.
  • Waterproof & Dustproof: Most military connectors have IP ratings to prevent moisture and dust intrusion.
  • Electromagnetic Interference (EMI) Shielding: Provides excellent shielding to prevent signal interference.
  • Resistance to Extreme Environments: Functions reliably in extreme temperatures, humidity, and corrosive conditions.
  • High Conductivity: Made from high-quality metal materials, ensuring stable signal transmission with low latency.

Wire Processing in Military Connectors

Wire processing is an essential technology in modern manufacturing, encompassing various techniques such as cutting, stripping, crimping, soldering, and assembly to meet diverse application needs. In military-grade connectors (e.g., MS3108A20-29P), precision and reliability in wire processing are crucial.

1. Basic Wire Processing Steps

  • Wire Selection
    Choose appropriate wire materials based on the application, such as copper-core wires, tinned copper wires, or aluminum wires, to ensure conductivity and durability.
  • Cutting
    Use automatic wire cutting machines or manual tools to cut wires to the required length, ensuring accuracy.
  • Stripping
    Remove the outer insulation layer to expose the conductor for subsequent crimping or soldering.
  • Crimping
    Crimp terminals or connectors onto the wire, ensuring a secure mechanical and electrical connection.
  • Soldering
    In some applications, soldering is required to enhance conductivity and durability, using flux and tin solder.
  • Assembly & Testing
    After processing, assemble the wires with the connectors and conduct continuity tests and durability tests to ensure quality.

2. Wire Processing Requirements for Military Connectors

Military connectors such as MS3108A20-29P are widely used in defense, aviation, and industrial applications, requiring strict compliance with standards.

  1. Durability
    • Wires must withstand frequent plugging/unplugging and mechanical stress.
    • Multi-stranded flexible wires are often used to improve flexibility.
    • Secure crimping ensures a firm connection.
  2. Waterproof & Dustproof
    • Military connectors often require IP-rated protection.
    • Heat shrink tubing, silicone seals, and other protective measures prevent moisture and dust intrusion.
  3. Electromagnetic Interference (EMI) Shielding
    • Military environments are prone to EMI, so wires need shielding layers (e.g., tinned copper braid or aluminum foil).
    • Ensures stable signal transmission.
  4. Resistance to Extreme Environments
    • Military equipment may face extreme temperatures and corrosive environments.
    • Wires should use high-temperature materials (e.g., PTFE, silicone) and oxidation-resistant coatings (e.g., silver or gold plating).
  5. High Conductivity
    • To minimize signal loss, military wires use high-purity copper or gold-plated terminals.
    • Crimping and soldering must be strictly controlled to prevent excessive contact resistance.

3. Wire Processing Equipment & Techniques

  • Automatic Wire Cutting & Stripping Machines: Enhances efficiency and precision for large-scale production.
  • Crimping Machines: Ensures secure crimping, meeting military standard quality.
  • Soldering Equipment: Includes spot welders and manual soldering stations for specific applications.
  • Heat Shrink Tubing & Insulation Treatment: Uses heat shrink tubing, insulation coatings, etc., to enhance protection.
  • Testing Instruments: Includes continuity testers, insulation testers, and high-frequency testers to ensure compliance with electrical performance standards.

4. Applications of Military Connector Wire Processing

  • Military Communication Equipment: Ensures stable signal transmission, preventing interference.
  • Aerospace & Aviation Equipment: Used in aircraft and spacecraft electrical connections, requiring high-temperature and vibration resistance.
  • Industrial Automation: Applied in sensors, robotic arms, and other equipment operating in harsh environments.
  • Naval & Marine Equipment: Wires must resist water, salt, and corrosion.
  • Military Vehicles & Armored Equipment: Electronic systems in military vehicles require resistance to vibration and impact.

Conclusion

Wire processing plays a critical role in military connectors, directly impacting the reliability and stability of the entire system. With precise manufacturing techniques, strict quality control, and high-quality materials, wire processing ensures the best compatibility between wires and military connectors, meeting harsh environmental requirements.

As military connector technology advances, wire processing techniques will continue to evolve to meet higher performance standards and environmental challenges.
